人気の負荷試験(負荷テスト)ツールを調べてみる(Locust, Vegeta, wrk)

負荷試験(負荷テスト)ツール一覧

人気の負荷試験(負荷テスト)ツールを調べてみる。
ツール一覧はawesome-http-benchmarkにまとまってた。

github.com

スター数順に並べてみる(スター数500以上)。
wrk, Vegeta, Locustが人気のようだ。

Repository スター数
wg/wrk 24,502
tsenart/vegeta 14,504
locustio/locust 12,699
rakyll/hey 8,265
loadimpact/k6 6,480
gatling/gatling 4,708
apache/jmeter 4,079
JoeDog/siege 3,997
mcollina/autocannon 3,642
giltene/wrk2 2,467
codesenberg/bombardier 2,069
processone/tsung 1,958
goadapp/goad 1,797
fortio/fortio 1,291
httperf/httperf 752
h2non/baloo 683
fcsonline/drill 540


パフォーマンスを比較した結果がないか探していたところ下記にまとまっていた。

k6.io

下記12ツールの比較を行っており、
Hey, Vegeta, k6, Locust, wrkがよいとのこと(ユースケースによる)。

  • Apachebench 2.3
  • Artillery 1.6.0
  • Drill 0.5.0
  • Gatling 3.3.1
  • Hey 0.1.2
  • Jmeter 5.2.1
  • k6 0.26.0
  • Locust 0.13.5
  • Siege 4.0.4
  • Tsung 1.7.0
  • Vegeta 12.7.0
  • Wrk 4.1.0

人気かつパフォーマンスもよさそうなLocust, Vegeta, wrkを少し見てみる。


Locust

github.com

LocustはPython製(2011年頃からある)でpipでインストールできる。

$ pip install locustio

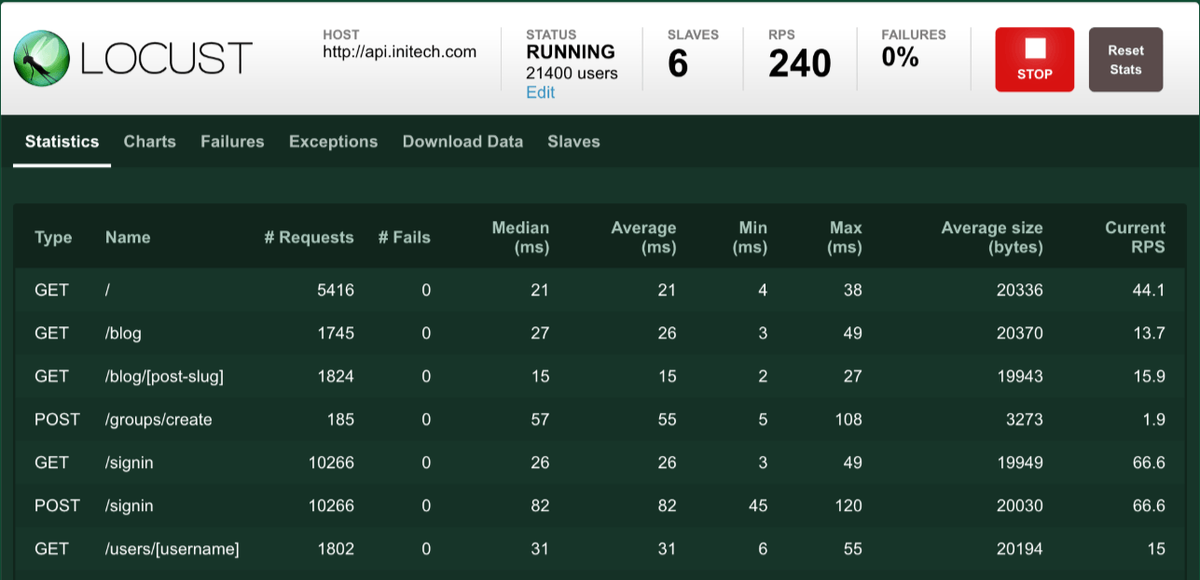

テストシナリオを以下のようにPythonで書くことができ、WebベースのUIが使えるのが特徴のようだ。

from locust import HttpLocust, TaskSet, between

def login(l):
    l.client.post("/login", {"username":"ellen_key", "password":"education"})

def logout(l):
    l.client.post("/logout", {"username":"ellen_key", "password":"education"})

def index(l):
    l.client.get("/")

def profile(l):
    l.client.get("/profile")

class UserBehavior(TaskSet):
    tasks = {index: 2, profile: 1}

    def on_start(self):
        login(self)

    def on_stop(self):
        logout(self)

class WebsiteUser(HttpLocust):
    task_set = UserBehavior
    wait_time = between(5.0, 9.0)

f:id:wonder-wall:20200513220016p:plain


Vegeta

github.com

VegetaはGo製(2014年頃からある)でバイナリのダウンロードやgo getでインストールできる。
コマンドラインツールだけでなくライブラリとしても使えるとのこと。

$ go get -u github.com/tsenart/vegeta

Usageのexampleによると以下のように使う。
vegeta attackというのがいいね。

examples:
  echo "GET http://localhost/" | vegeta attack -duration=5s | tee results.bin | vegeta report
  vegeta report -type=json results.bin > metrics.json
  cat results.bin | vegeta plot > plot.html
  cat results.bin | vegeta report -type="hist[0,100ms,200ms,300ms]"

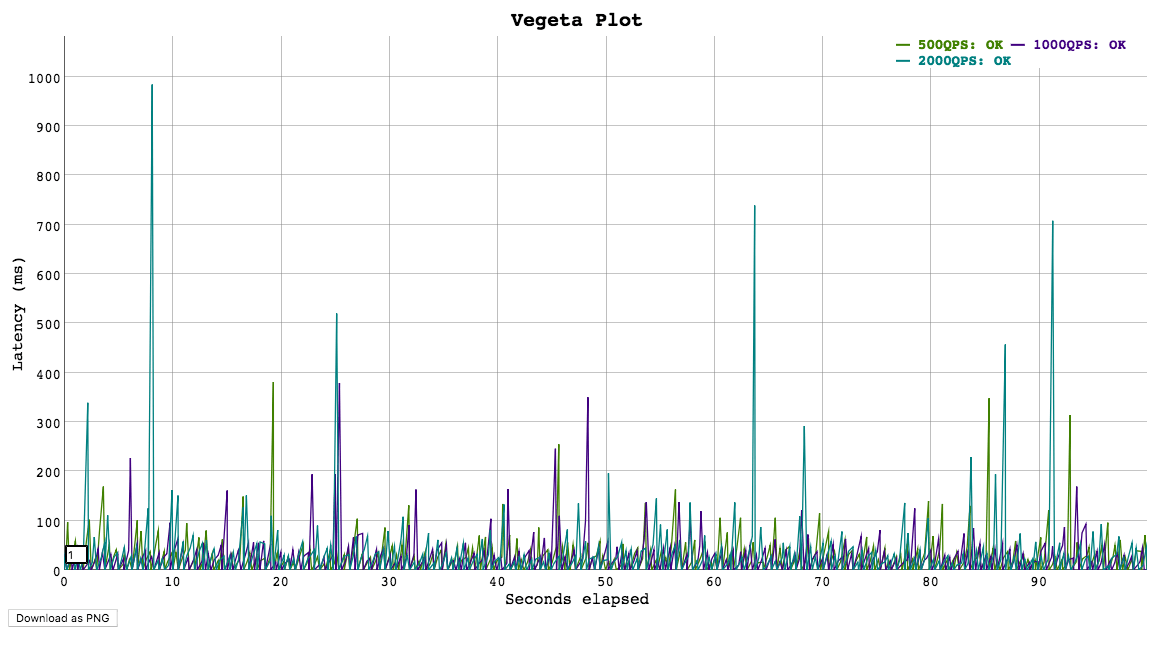

vegeta plotコマンドを使うとグラフも描けるようだ。

f:id:wonder-wall:20200513221948p:plain


wrk

github.com

wrkはCで書かれており(2012年頃からある)ソースコードからmakeする。

$ wrk
Usage: wrk <options> <url>
  Options:
    -c, --connections <N>  Connections to keep open
    -d, --duration    <T>  Duration of test
    -t, --threads     <N>  Number of threads to use

    -s, --script      <S>  Load Lua script file
    -H, --header      <H>  Add header to request
        --latency          Print latency statistics
        --timeout     <T>  Socket/request timeout
    -v, --version          Print version details

  Numeric arguments may include a SI unit (1k, 1M, 1G)
  Time arguments may include a time unit (2s, 2m, 2h)

下記は12スレッド、400コネクション、30秒間負荷をかけるコマンド例。

$ wrk -t12 -c400 -d30s http://127.0.0.1:8080/index.html

出力:

Running 30s test @ http://127.0.0.1:8080/index.html
  12 threads and 400 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency   635.91us    0.89ms  12.92ms   93.69%
    Req/Sec    56.20k     8.07k   62.00k    86.54%
  22464657 requests in 30.00s, 17.76GB read
Requests/sec: 748868.53
Transfer/sec:    606.33M

Luaスクリプトを読み込んで実行することもできるとのこと(スクリプト例)。
